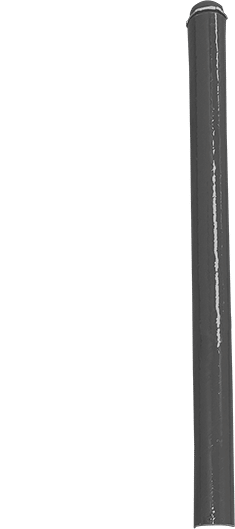

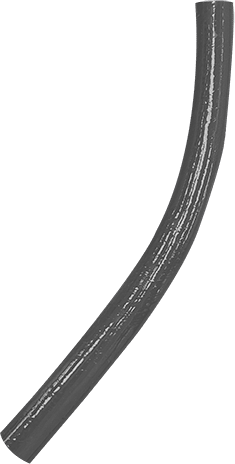

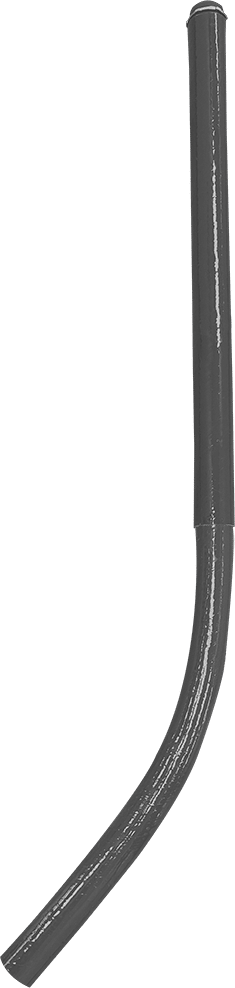

Risers A Risers A Risers B

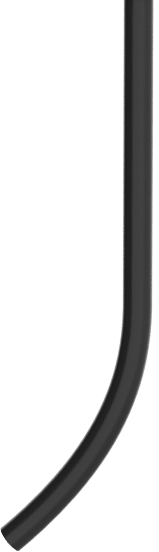

Black curved fiberglass electrical conduit strut wp XUR

Expandable Utility Risers™ (Patent Pending)

Champion’s new XUR solution is an expandable riser requiring no cutting or gluing, easing the installation of ground electrical cable to panel and meter boxes. Like other Champion Fiberglass® products, Champion XUR is lightweight, corrosion-resistant and offers a low coefficient of friction during installation.

The new expandable utility riser withstands extreme temperature changes, protecting against expansion and contraction from high variations, and creating a safe installation environment.

installation Step

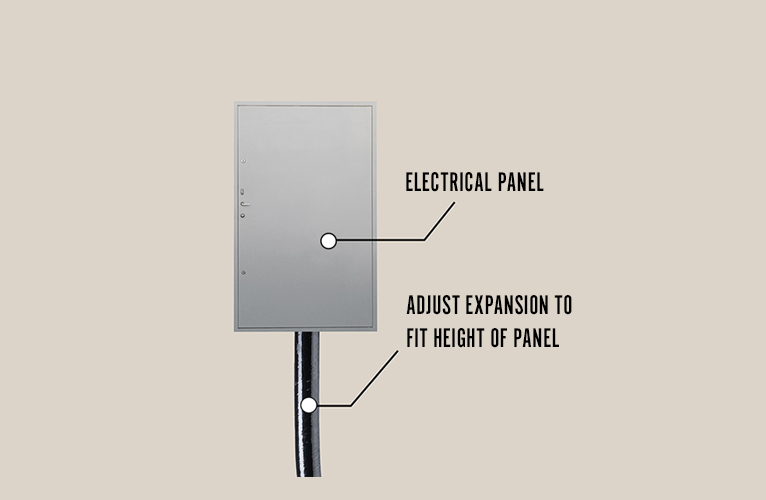

Champion Expandable Utility Risers™ remove the two slowest steps in riser installation: cutting and gluing. Each riser adjusts to height in place, so crews complete underground-to-overhead electrical transitions without field cutting, without adhesive cure windows, and without the rework that follows a mis-cut riser.

The patent-pending design also absorbs expansion and contraction from temperature swings, ground settling and freeze-thaw cycles, and is operable from -40°F to +230°F, so the joint is not stressed as the ground moves around it. Risers are UL 2515 listed for above ground use, impact resistant and UV resistant, and can be made and shipped with customer-specific transitions including PVC couplers, PVC stubs, and fiberglass or PVC male and female adapters. The design was recognised with a 2025 NECA Show Stoppers award and Consulting-Specifying Engineer Product of the Year.

Champion XUR
Advantages

Champion XUR offers the following benefits:

expanded support
For contractors and electrical engineers
  • Height adjustable
  • Operable in temperatures of -40 degrees to +230 °F
  • Allows for expansion and contraction due to temperature, ground settling, and ground freeze/thaw cycles
  • Impact resistant
  • UV resistant
  • Can be made & shipped with customer specific transitions (PVC couplers, PVC stubs, fiberglass or PVC male adapter/female adapters, etc.)
  • Champion’s proven track record of on-time product delivery and responsiveness
better performance
Fiberglass risers cut installation time in two ways
The material is light enough for a single installer to position without equipment, and risers arrive prefabricated in one piece, so the underground-to-overhead transition does not require the cutting and threading that metallic risers do. Risers can be made and shipped with customer-specific transitions, including end bells, PVC couplers, PVC stubs, and fiberglass or PVC male and female adapters, which removes field fabrication from the critical path. A coefficient of friction of 0.38, against 0.90 for PVC Schedule 40 and 80, means the cable pull into the panel, cabinet or meter box goes faster and without the risk of burn-through.

Champion XUR
Engineering

Champion XUR meets the following specifications and requirements

UL 2515 listed for above ground use:

  • Listed in Article 12-200 of the CEC (Canadian Electrical Code) as Rigid RTRC Conduit
  • Listed in the NEC (National Electrical Code) in Article 355 as Reinforced Thermosetting Resin Conduit

100% Digital Facility striving to meet environmental and system management requirements:

  • ISO 9001 – Certified in quality management systems for over a decade
  • ISO 14001 – World’s premier environmental management certification
  • ISO 45001 – Certified occupational health and safety management systems

These resources will help you compare Expandable Utility Risers to other in-market conduit materials.

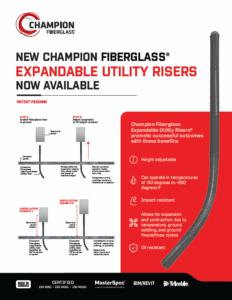

Expanded Utility Risers Sales Sheet Cover
Expandable Utility Risers

Champion XUR have contributed to project safety and savings in the following industries:

Installing black Champion fiberglass conduit in deep trench
Icon
Utilities
